Cổng tự động COMUNELLO CONDOR
Click image for Gallery
CONDOR 220 350

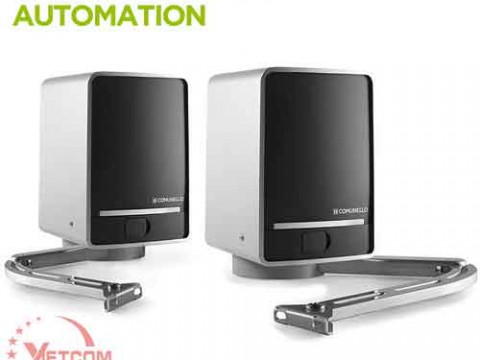

Condor is a line of impact-resistant articulated arm actuators designed to perform to the highest standards in all weathers.
Provided with a shock-proof basement and a die-cast alloy arm, it is constructed to guarantee absolute security in case of emergency as well as maximum power output from elevated torque. The new control panel performs to the highest standards and provides simple automated/semi-automated programming of the end-stop positions.
Easy and practical to install, these actuators are the ideal solution for heavy use situations.
Provided with a shock-proof basement and a die-cast alloy arm, it is constructed to guarantee absolute security in case of emergency as well as maximum power output from elevated torque. The new control panel performs to the highest standards and provides simple automated/semi-automated programming of the end-stop positions.
Easy and practical to install, these actuators are the ideal solution for heavy use situations.

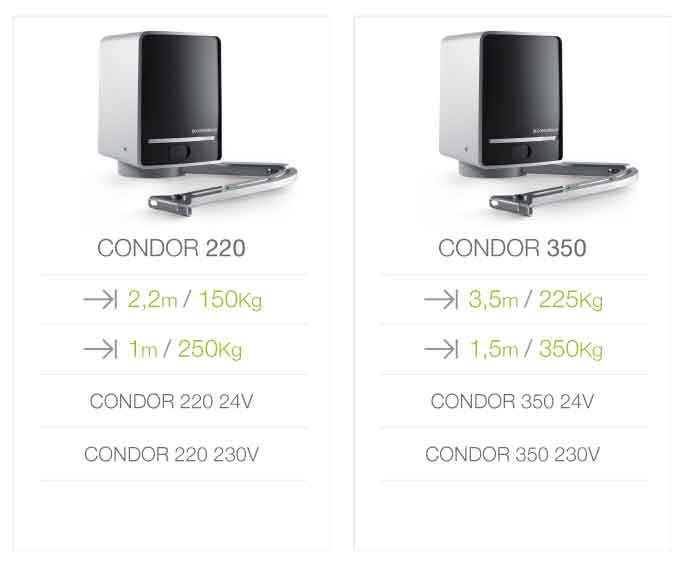

CONDOR 220
CONDOR 350
- Compatible only with CONDOR 220
- 24V and 230V version for 2 motors
- Suitable for actuators without encoder
- Autoprogramming of the stroke with slowdowns in opening and closing phase
- Indicator LEDs for simple and immediate diagnostics
- 24V version with obstacle detection by current absorption
- Equipped with removable radio receiver and data storage
- Speed regulation by trimmer
CONDOR 500
Condor 500 is an ambidextrous, robust and compact articulated arm actuator.
Suitable for mounting on large columns, it guarantees absolute security in case of emergency as well as maximum power output from elevated torque.
Compatible with all Comunello control units, Condor 500 is equipped with double limit switches for both opening and closing. Different articulated arms are available to adapt the automation to a wide range of installation dimensions and assembly needs
Suitable for mounting on large columns, it guarantees absolute security in case of emergency as well as maximum power output from elevated torque.
Compatible with all Comunello control units, Condor 500 is equipped with double limit switches for both opening and closing. Different articulated arms are available to adapt the automation to a wide range of installation dimensions and assembly needs
CONDOR 500
- 24V and 230V version for 1 or 2 motors
- Suitable for actuators with or without encoder
- Autoprogramming of the high precision stroke thanks to the encoder management
- Indicator LEDs for simple and immediate diagnostics
- Precise obstacle detection using the Encoder (in both 24V and 230V versions)
- Equipped with removable radio receiver and data storage
- The dedicated 'Indicator Light ' output allows to signal the position status of the gate
- Regulation of speed, forces and sensitivity by trimmers
- In the 230V version are available a 24V flashing output and a 230V flashing output, that can be programmed as Courtesy Lights
CONDOR 500 S
Condor 500 S is a robust, compact, ambidextrous articulated arm actuator with on-board control unit.
Suitable for mounting on narrow pillars starting from 120 mm, it guarantees absolute security in case of emergency as well as maximum power output from elevated torque. Condor 500 S is equipped with double limit switches in both opening and closing.
Different articulated arms are available to adapt the automation to a wide range of installation dimensions and assembly needs.
Suitable for mounting on narrow pillars starting from 120 mm, it guarantees absolute security in case of emergency as well as maximum power output from elevated torque. Condor 500 S is equipped with double limit switches in both opening and closing.
Different articulated arms are available to adapt the automation to a wide range of installation dimensions and assembly needs.
CONDOR 500 S
Condor 500 S is a robust, compact, ambidextrous articulated arm actuator with on-board control unit.
Suitable for mounting on narrow pillars starting from 120 mm, it guarantees absolute security in case of emergency as well as maximum power output from elevated torque. Condor 500 S is equipped with double limit switches in both opening and closing.
Different articulated arms are available to adapt the automation to a wide range of installation dimensions and assembly needs.
Suitable for mounting on narrow pillars starting from 120 mm, it guarantees absolute security in case of emergency as well as maximum power output from elevated torque. Condor 500 S is equipped with double limit switches in both opening and closing.
Different articulated arms are available to adapt the automation to a wide range of installation dimensions and assembly needs.
CONDOR 500 S
- 24V and 230V version for 1 or 2 motors
- Suitable for actuators with or without encoder
- Autoprogramming of the high precision stroke thanks to the encoder management
- Indicator LEDs for simple and immediate diagnostics
- Precise obstacle detection using the Encoder (in both 24V and 230V versions)
- Equipped with removable radio receiver and data storage
- The dedicated 'Indicator Light ' output allows to signal the position status of the gate
- Regulation of speed, forces and sensitivity by trimmers
- In the 230V version are available a 24V flashing output and a 230V flashing output, that can be programmed as Courtesy Lights
