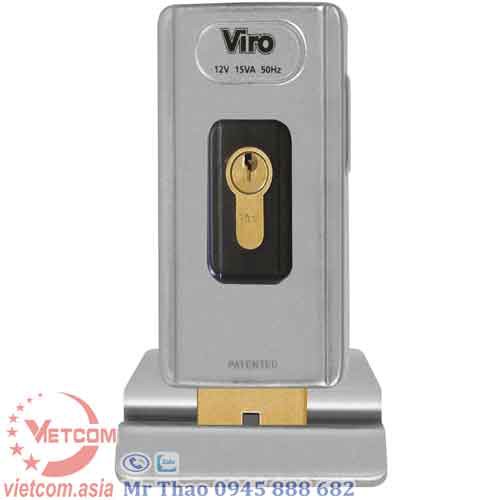

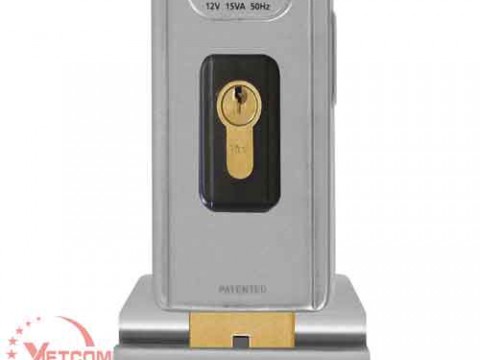

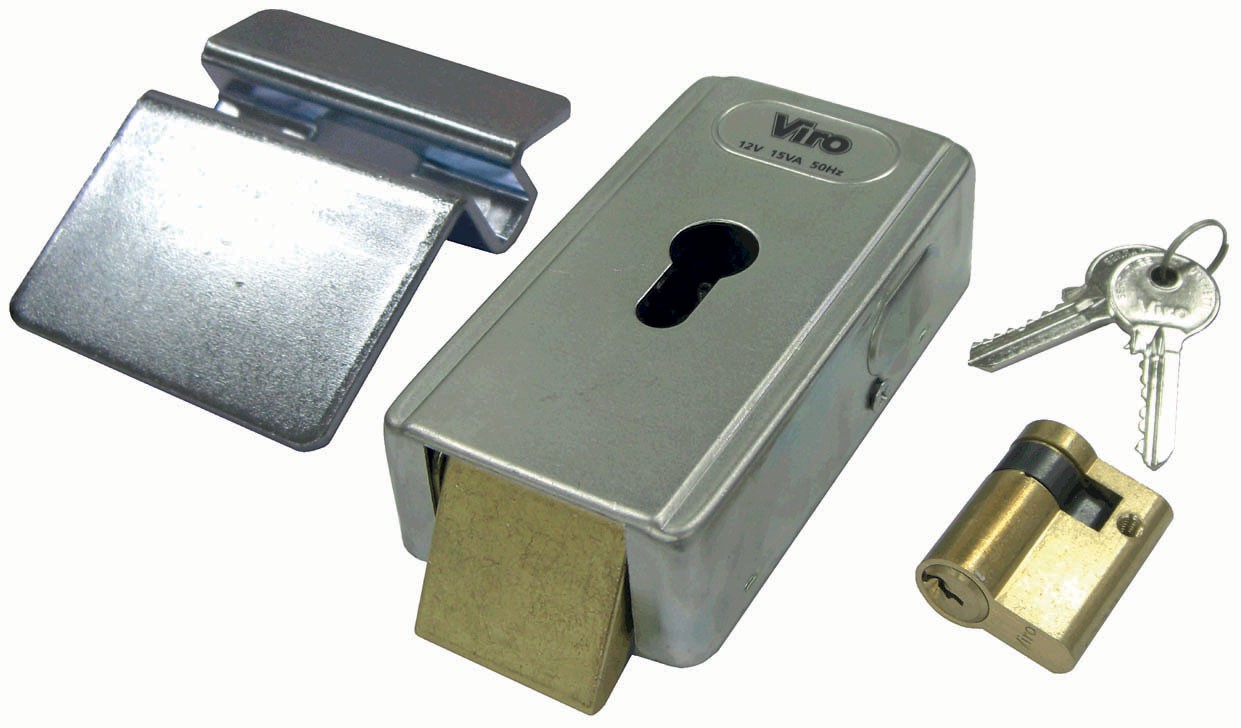

V06 - Universal - Rotating dead-bolt - With service and security function

The V06 electric lock is suitable for inside or outside manual or automatic doors and pedestrian or drive-through gates and is interchangeable with the V96 electric locks. It is standard supplied with the service function and, by simply removing an internal part, can get the security function. Its small size and the floor striker provided make it ideal for vertical installation on narrow frames.

FEATURES

• Installation:

  vertical or horizontal.

• Backset:

  70 mm.

• Functions:
  • service (standard):the lock opens with the electric impulse and only resets once the door/gate has been opened and then closed. It is therefore suitable for use with doorclosers and/or all types of automation systems.
  • security (selected by manually removing an internal part): the lock opens only when electric impulse and manual or automatic pressure are applied simultaneously. It is therefore not advisable to use it with a doorcloser and/or unsuitable automation systems.
• Double replaceable coil:

  which distributes the load uniformly and ensures a long working life.

• Voltage:

  standard 12V AC (on request 12V DC; 24V AC or DC).

• Case:

  one-piece steel (completely galvanized or anthracite metallic painted with a galvanized base).

• Cover:

  steel (completely galvanized or anthracite metallic painted with a galvanized base).

• Rotating dead-bolt

  solid brass, with nylon insert which makes the locking more silent.

• DATA SHEET



Note: for horizontal installation, order the specific optional striker
(item 7912.117.217).



 ZOOM

For horizontal installation, order the specific optional striker
(item 7912.117.217)



 ZOOM

V06 UNIVERSAL - ROTATING DEAD-BOLT - DOUBLE FUNCTION

Item	Drawings	Description	Unit weight
No.			g
1.7918		With floor striker	1290
1.7918.V.469		With floor striker Anthracite metallic painted	1290
1.7918.H.217		With striker for horizontal installation	1200
1.7918.H.469		With striker for horizontal installation Anthracite metallic painted	1200
1.7918.469		With nylon handle and striker for horizontal installation Anthracite metallic painted	1370

700, 900, NEW EURO-PRO and VIRO PALLADIUM series can be used for double and half cylinders.

ACCESSORIES

Item	Drawings	Description	Unit weight
No.			g
1.7918.0600		*PEDESTRIAN GATES INSTALLATION KIT	1030
1.7918.0600.469		PEDESTRIAN GATES INSTALLATION KIT ANTHRACITE METALLIC PAINTED	1030
1.7918.0600.1		ACCESSORIES FOR INSTALLATION ON MOTORIZED UP AND OVER DOORS	2630
1.7918.0600.2		ACCESSORIES PAIR FOR INSTALLATION ON MOTORIZED UP AND OVER DOORS	5260
1.7918.0610.1		ACCESSORIES FOR ELECTRIC LOCK INSTALLATION ON MOTORIZED UP AND OVER DOORS + V6	3920
1.7918.0610.2		ACCESSORIES FOR ELECTRIC LOCKS PAIR INSTALLATION ON MOTORIZED UP AND OVER DOORS + 2 V06	7840
1.7918.806		SECURITY ESCUTCHEON	300
1.7918.850		**OPTIONAL POWER SUPPLY KIT	1160

*Kit for installation on doors and pedestrian gates Item No. 1.7918.0600 composed of: nylon handle, striker for horizontal installation, roof-plate, striker plate and fixing screws.

**N.B. to make the electrical connection as easy as possible, in combination with motors for up and over doors without direct power supply control. Kit composed of: transformer, timer, magnetic thermal switch, fuse holder with fuse and closing plate.
