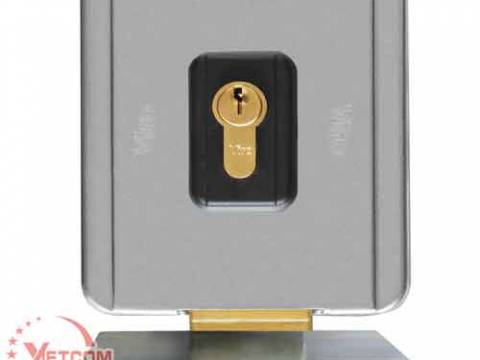

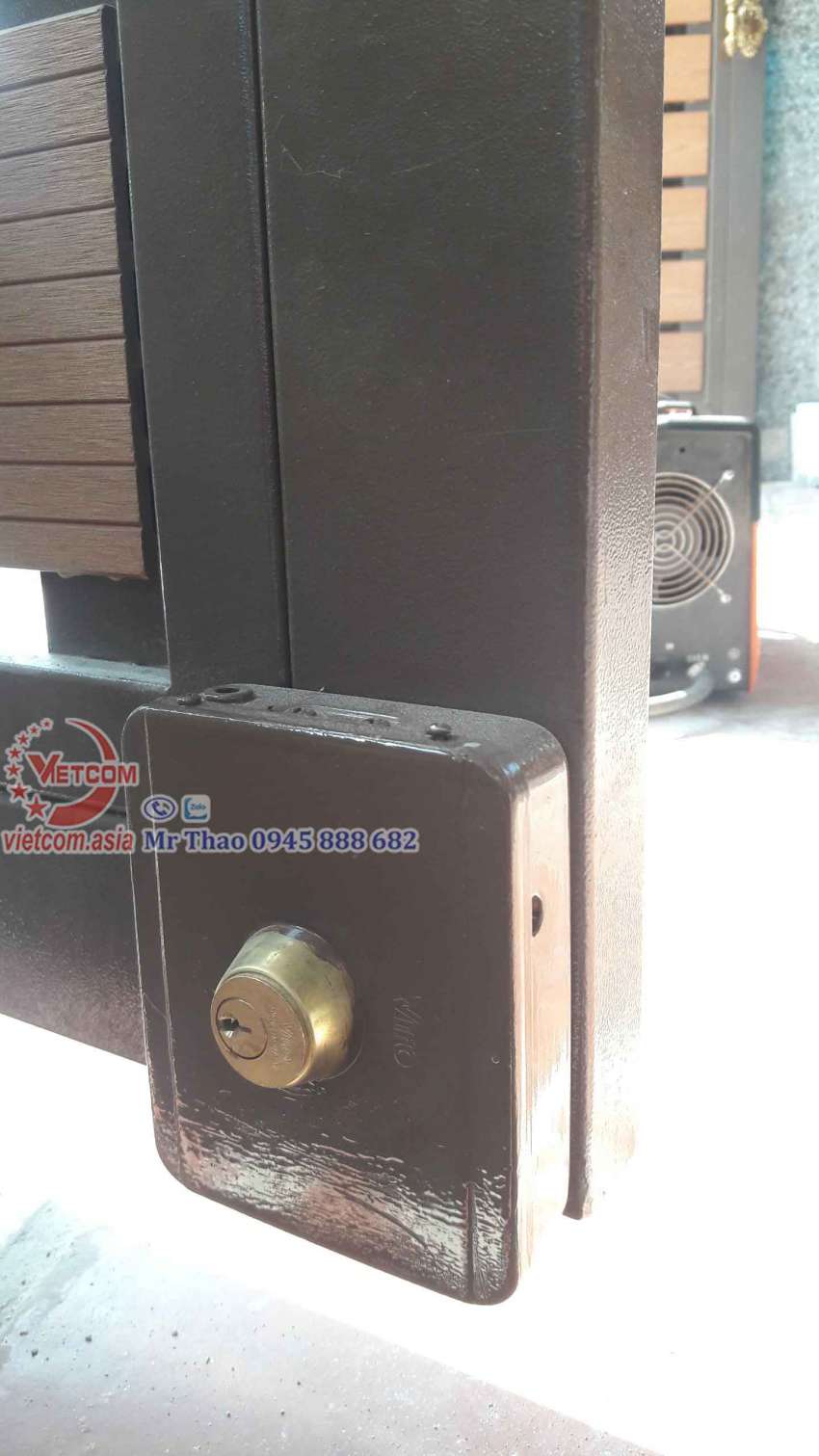

V90 - Rotating dead-bolt - with service function - For outward opening

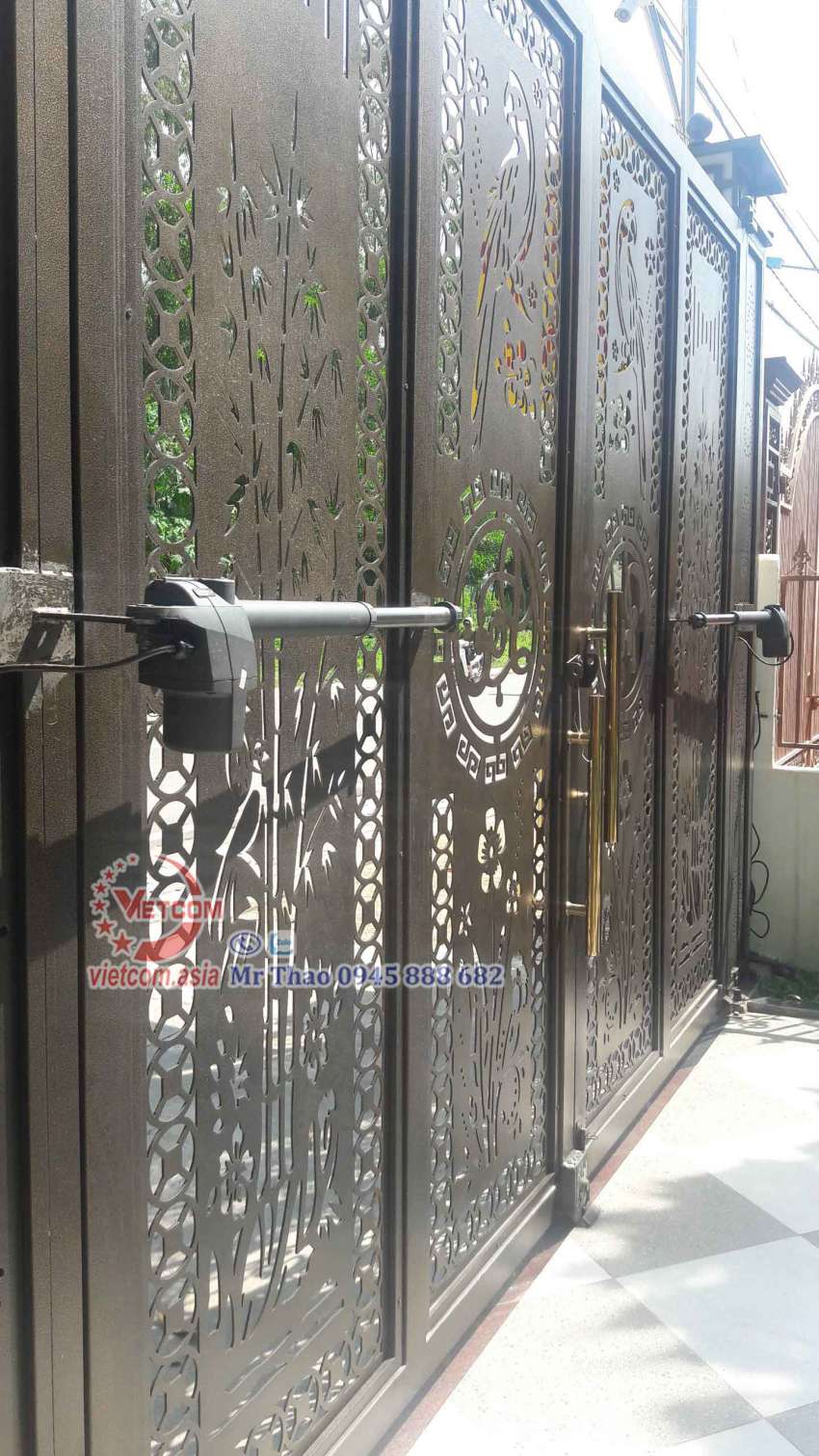

This V90 electric lock was specially designed for installation on manual or automatic outside outward opening doors and drive-through gates. This type of opening is necessary when the door/gate is situated on a slope or when safety regulations foresee an outward-opening escape route in the event of an emergency. The characteristics and finish make it ideal for installation even in surroundings subject to considerable temperature ranges.

 FEATURES

• Installation:

  vertical or horizontal.

• Backset:

  70 mm.

• Service function:

  the lock opens with the electric impulse and only resets once the door/gate has been opened and then closed. It is therefore suitable for use with doorclosers and/or all types of automation systems.

• Double replaceable coil:

  which distributes the load uniformly and ensures a long working life.

• Voltage:

  standard 12V AC (on request 12V DC; 24V AC or DC).

• Case:

  one-piece galvanized steel.

• Cover:

  galvanized steel.

• Rotating dead-bolt

  solid brass.

• Cylinder:

  set up for double or half profile cylinders (not provided).

• Striker:

  galvanized steel, to ensure the correct working of the lock even if there is vertical adjustment between the lock and the striker (caused by weather changes).

• Supplied with:

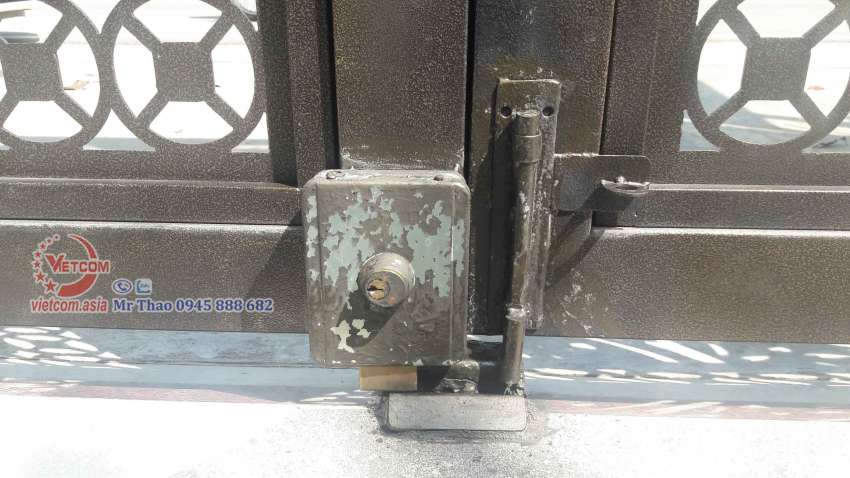

  • for horizontal installation: galvanized steel striker (item 7928.117), galvanized steel roof-plate and striker plate;
  • for vertical installation: galvanized steel floor striker (item 9986), galvanized steel roof-plate (item 9989); nylon ring nut and plug, passivated steel support for profile cylinder and fixing screws.
• Packaging:

  single box.

• On request:

    Available anthracite metallic painted versions, the item code should be followed by .469

• N.B. profile cylinder not provided

• DATA SHEET





 ZOOM

OUTSIDE INTERNAL



 ZOOM



 ZOOM

OUTSIDE INTERNAL



 ZOOM

V90 - ROTATING DEAD-BOLT FOR OUTWARD OPENING

	Item	Description	Unit weight
	No.		g
	7928	Horizontal installation	2350
	7928.404	Vertical installation	2255

700, 900, NEW EURO-PRO and VIRO PALLADIUM series can be used for double and half cylinders.
